Features
Higher Cycle:
Longer Life:Grade A cells, high charging and discharging efficiency, more than 6000 cycles
LCD Display:
Monitor the operating status data of ESS system in real time
BMS Intelligent Protection:
Overcharge, overcurrent, overdischarge,overvoltage protection.
Convenient Installation：
Quick installation with standard 19-inch module, easy for installation
Modular Design:
Modular design, parallel expansion, flexible choice of voltage and capacity
RS485/CAN Communication:
it supports RS485 and CAN communication at the same time
Parameters
Product Model:HVM128S100BL-U
Number Of Modules:8
Energy Capacity (Ah):100
Standard Voltage (V):409.6
Rated Energy (kWh):40.96
Product Dimensions (L x W x Hmm):548x584x1950
Net weight (kg):425
Standard Charge Current (A)：20
Maximum Discharge Current (A)：100
IP Protection：21
Battery Type:LFP
Nominal Voltage (v):51.2
Operating Voltage Range (v)：42~58.4
Communication：CAN/RS485
Installation：Cabinet holding
Operating Temperature：Charging: 0~60°C;Discharge:-10~60°C
Application Scenario and Precautions

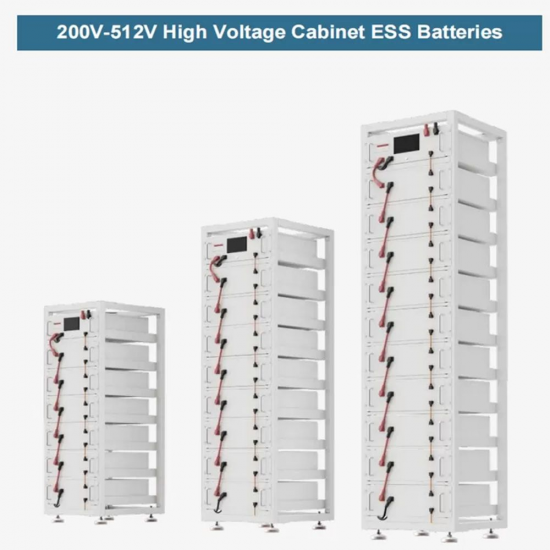

High-voltage cabinet batteries can be stacked,and the main use areas are as follows:Standby power，Home energy storage，Machine shop，Remote Monitoring，Power control，Solar Storage
Precautions：
Do not short circuit, crush or disassemble
Heating or incineration is prohibited
In order to minimize self-discharge during storage for long time, please disconnect the battery connection of the high voltage control box from the DC connection harness

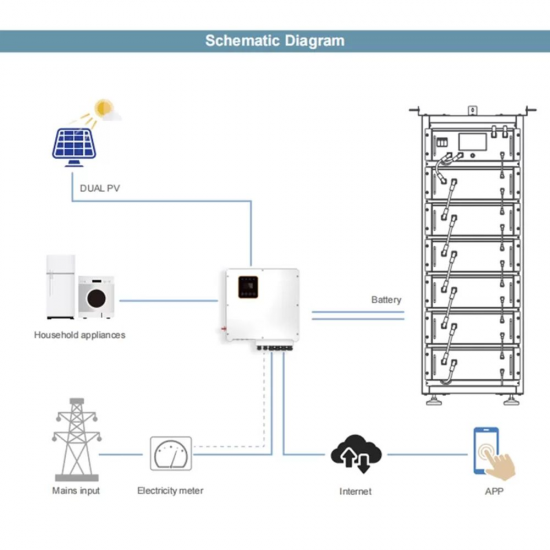

Supporting inverter
100% unbalanced output, max output up to 50% rated power for each phase
AC couple to retrofit existing solar system
Max. 10pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max.charging/discharging current of 100A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
