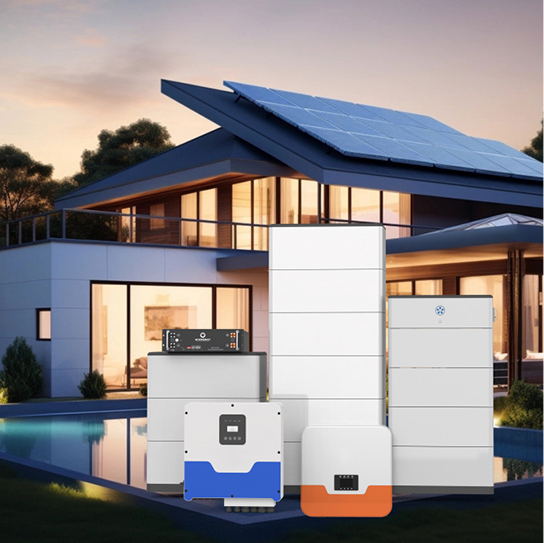

Household Energy Storage
Features:
1、 Lithium iron phosphate battery pack: 80% DOD, more than 6000 cycles warranty period: 3 years
2、Higher energy density, smaller home size. Long life and safety.
3、Solar energy system: The battery pack is designed for home solar energy systems.
4、Battery management system (BMS) : the battery pack built-in BMS to monitor its operation, to prevent battery operation beyond the design limit.
5、Expansion ability: the battery pack can be easily expanded by parallel expansion battery pack
6、Panel pattern support customization
Product Description
Technical Parameters
| PRODUCT MODEL | 24200/48100 |
| ARGUMENT | |
| RATED POWER | 5.12KWH |
| NOMINAL VOLTAGE | 25.6VDC/51.2VDC |
| OPERATING VOLTAGE | 22.4VDC/28.8VDC/44.8VDC-57.6VDC |
| BATTERY TYPE | LIFEPO4 LITHIUM IRON PHOSPHATE |
| BATTERY CAPACITY | 200AH/100AH |
| RATED ENERGY | 5.12KWH |
| BATTERY TYPE | 8S2P/16S1P |
| SOC | 10-100% |
| CHARGING CURRENT | 0.5C |
| DISCHARGE CURRENT | 0.5C |
| BATTERY MANAGEMENT SYSTEM | MULTI-POINT MONITORING BMS MANAGEMENT SYSTEM |
| SCALABLE (PARALLEL FUNCTION) | MAX 16 UNITS |
| PROTECTION | Battery undervoltage protection/battery overvoltage protection battery overvoltage recovery voltage/overload power protection short circuit protection/temperature protection |
| CYCLE LIFE (0.5C&25°C) | 6000 cycles@0.5C:80%DOD |
| QUALITY GUARANTEE | THREE YEARS |
| OPERATING TEMPERATURE | CHARGE:0~45°C,DISCHARGE: -10-45°C |
| STORAGE TEMPERATURE | -20~50°C |
| CLASS OF PROTECTION | IP20 |
| COOLING MODE | NATURAL COOLING |
| COMMUNICATION MODE | RS232/RS485/CAN communication (can communicate with mainstream inverters on the market) |
| OPERATING TEMPERATURE | -15 °C ~40C |
| RELATIVE HUMIDITY | 0-95% NO CONDENSATION |
| RELEVANT CERTIFICATE | MSDS, UN38.3, CE, IEC626199 (BATTERY), UL (BATTERY) |
Application
Residential
Office
Network Equipment
Household Appliances
Telecom
Power Station
