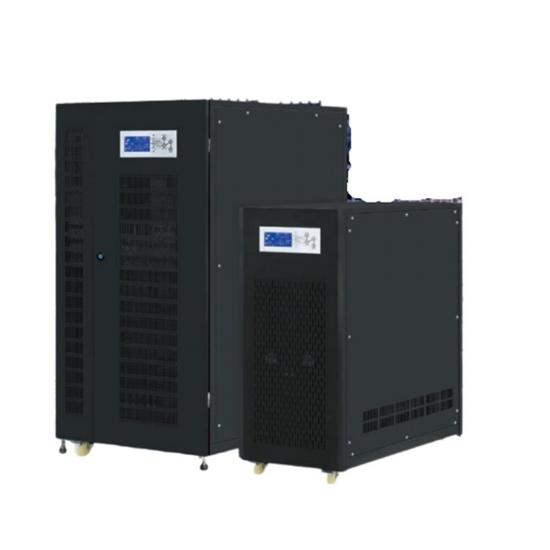

Product Attributes
Low battery voltage input, adaptable to different battery type, 3 phase Ac voltage input ,3 phase AC voltage output
Support three-phase unbalanced load, accept three times peak power.
Ultra-wide input voltage ,immunity range, protect the stable operation.
Optional built-in MPPT solar controller, providing high-efficiency green power.
LCD display clearly shows the status of the device, easy to operate.
Adjustable mains charging current range 0-45A.
Supports RS485 and cell phone APP (WIFI or GRPS) to realize remote monitoring.
Technical Parameters
AC input
Rated Input Voltage:380VAC/400VAC;Customizable 190VAC/200VAC/415VAC
AC Input Voltage Range:323VAC-456VAC/323VAC-480VAC
AC input Frequency Range:43Hz~53Hz(50Hz)，53Hz~63Hz(60Hz)
AC Output
Output Wave /Conversion Efficiency:Pure sine wave>85%
Conversion Efficiency:>85%
AC Output Voltage /Frequency Range (lNV Mode):380VAC+2%/400VAC+2% 50/60Hz+1%(The output voltage can be customized to 190VAC/200VAC/415VAC)
Built-in Controller MPPT(optional)
Rated Current:100A
PV Array Max Power:192V(11.2KW*2)/384V(22.4KW*2)
Max PV Input Voltage(Voc)(At The Lowest Temperature):48V system:150VDC;96V system:300VDc;192V system:450VDC;384V system : 800VDC
MPPT Tracking Voltage Range:48V system(60V-120V);96V system(120V-240V);192V system(240V-360V);384V system(480V-640V)
Other
Protection:Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection
Protection Degree:IP20
Display:LCD
Cooling Method:Cooling Fan in Intelligent Control
Communication Interfaces:RS485,APP(WIFlmonitoring or GPRS monitoring)Optional
Working Mode ( settable ):Battery priority/ Mains priority
Operating Temperature:-15℃~40℃
Relative Humidity:0%~95%，No Condensation
Altitude:2000m(more than derating
Application
This product can be used Residential,Industrial & Commercial Energy Storage,Airport /Train station,Thermal Power Plant /Nuclear Power Plant,Agricultural,Irrigation,Network
