Product Attributes

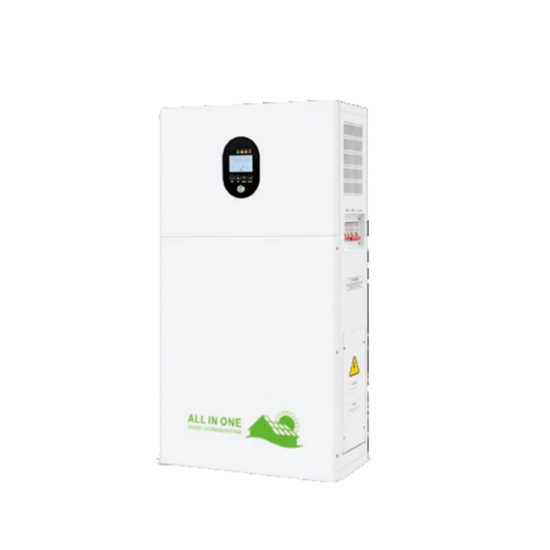

Convenient installation, integrating solar controller, inverter and battery all in one machine.
Compact and elegant design, unique art design and convenient output connection port.
Flexible energy storage capacity, supporting three charging methods:solar power , Petrol and diesel generator , and grid power .
Support wifi or app monitoring.
With over voltage, over temperature, overload, battery BMS communication and comprehensive protection.
Technical Parameters
Power
Rated Power:5000W
Parallel:Support parallel operation, up to 9 units in parallel
Battery
Standard Battery Voltage:48V
Battery Type:LiFePO4 battery
Battery Capacity:51.2VDC 100AH( Can parallel batteries, standard rack mount , 19inch/3U)
Max Charge/Discharge Current:100A
Charge/Discharge Cut-off Voltage:58.4VDC/44.8VDC
AC input
AC Input Voltage:220VAC/230VAC/240VAC
AC input Frequency:45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)
AC Output
Output Wave:Pure sine wave
Conversion Efficiency(INV mode):94%( peak value)
OutputVoltage/Frequency(INV mode):220VAC/230VAC/240VAC±2%/50Hz±1%,60Hz±1%
MPPT Solar Charge Controller
Max PV Input Voltage (Voc)(At The Lowest Temperature):500VDC
PV Array Maximum Power:6000W
MPPT Tracking Voltage Range:120V-450VDC
MAX PV Charging Current:80A
Other
Protection:Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection
Protection Degree:IP20
Display:LCD+LED
Cooling Method:Cooling Fan in Intelligent Control
Communication:USB/RS232 communication ,mobile APP (WlFl monitoring or GPRS monitoring) Optional
Working Mode :Mains priority/PV priority/Battery priority
Operating Temperature:-15℃~40℃
Relative Humidity:0%~95%，No Condensation
Size
Product Size(L*W*Hmm):525*180*900
Package Size(L*W*Hmm):535*190*910
Application
This product can be used Household,Car electricity,Office Equipment,Speaker Equipment,Camping,Agricultural Irrigation
