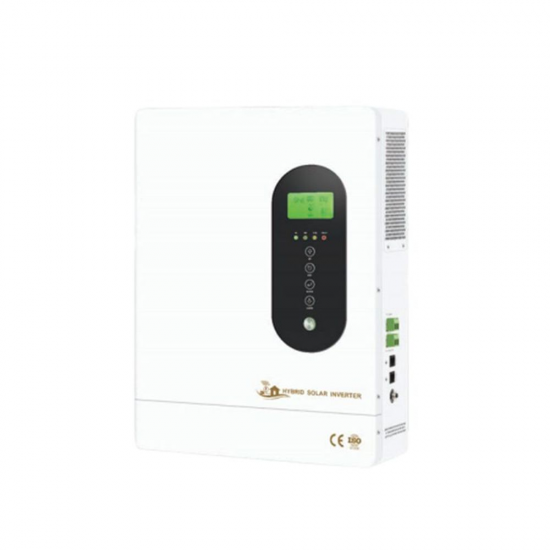

Product Attributes
Adopting high-frequency design, high power density, small size and high overall efficiency;
Bidirectional energy storage design can realize bidirectional flow control of electric energy, and both photovoltaic and mains power can charge the battery;
Ultra-wide MPPT range, as low as 80Vdc;
The working mode can be set (on-grid mode, off-grid mode, hybrid mode);
Equipped with output priority setting function;
With charging priority setting function;
Equipped with lithium battery BMS communication function;
Support battery-less operation mode;
Supports the use of smart meters to prevent back flow when running on the grid.
Technical Parameters
Technical Parameters
Off-Grid Operation (AC Input)
Rated input Voltage:220V/230V/240V
Mains Input Voltage Range:165Vac~280Vac/120Vac~280Vac(can be set)
Rated Input Frequency:50Hz/60Hz
Input Frequency Range:45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)
Mixed Operation (Complementary Mode (AC Input))
Rated Input Voltage:220V/230V/240V
Mains Input Voltage Range:187Vac~264Vac
Rated Input Frequency:50Hz /60Hz
Input Frequency Range:47Hz~52Hz(50Hz)，57Hz~62Hz(60Hz)
General parameters
Maximum Conversion Efficiency(Battery Discharge):94%(peak)
Mppt Tracking Efficiency:≥99.9
Conversion Time:10mS (Typical value)
Panel Display:LCD+LED
Heat Dissipation Method:Smart fan control
Communication Function：RS485/dry contact/mobile phone APP (WlFl monitoring or GPRS monitoring) (optional)
Protection Level：IP20
Installation Method：Wall-mounted
Protect
Battery Low Voltage Alarm：44Vdc (default)
Battery Undervoltage Protection：42Vdc (default)
Anti-lslanding Protection：≤2S
Overload Power Protection:Automatic protection (battery mode), circuit breaker or fuse (mains mode)
Output Short Circuit Protection:Automatic protection (battery mode), circuit breaker or fuse (mains mode)
Over Temperature Protection:>90°C(turn offinverter and charging)
Environment
Operating Temperature:-10C~50°C
Storage Temperature:-15C~60°C
Noise:≤55dB
Altitude:2000m(If it exceeds the limit, derating is required)
Relative Humidity:0%~95%,no condensation

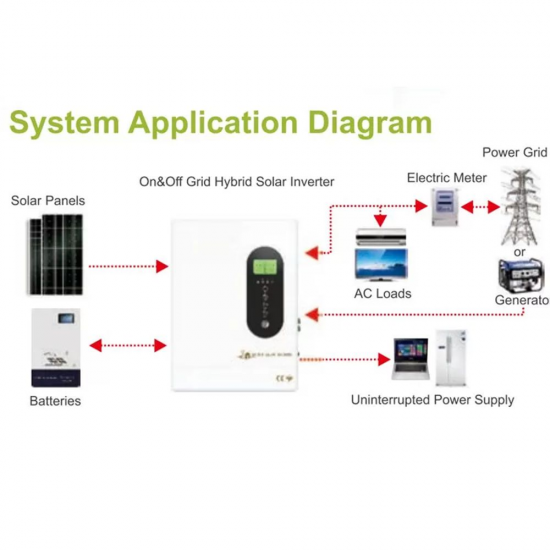

Application
This product can be used Household,Thermal power station/nuclear power station,Industrial and commercial energy storage,Agricultural Irrigation,Airport/high-speed rail station,Farm use
