Product Attributes
Adopting high-frequency design, high power density, small size, and high overall efficiency;
Bidirectional energy storage design, which can achieve bidirectional flow control of electrical energy, and both photovoltaic and mains electricity can be charged to the battery;
Ultra wide MPPT range, with a minimum of 40Vdc(24V models)/ 80Vdc(48V models);
Capable of setting working modes (grid connected mode, off grid mode,hybrid mode);
Equipped with grid connected current setting function;
Equipped with output priority setting function;
Equipped with charging priority setting function;
Equipped with lithium battery BMS communication function;
Support battery-less operation mode.
Technical Parameters
Off-Grid Operation (AC Input)
Rated input Voltage:220V/230V/240V
Mains Input Voltage Range:165Vac~280Vac/120Vac~280Vac(can be set)
Rated Input Frequency:50Hz/60Hz
Input Frequency Range:45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)
Mixed Operation (Complementary Mode (AC Input))
Rated Input Voltage:220V/230V/240V
Mains Input Voltage Range:187Vac~264Vac
Rated Input Frequency:50Hz /60Hz
Input Frequency Range:47Hz~52Hz(50Hz)，57Hz~62Hz(60Hz)
General parameters
Maximum Conversion Efficiency(Battery Discharge):94%(peak)
Mppt Tracking Efficiency:≥99.9
Conversion Time:10mS (Typical value)
Panel Display:LCD+LED
Cooling Method:Cooling fan in intelligent control
Communication：RS485/Mobile APP(WIFl Monitoring or GPRS monitoring)(Optional)
Protection Degree：IP20
Installation：Wall-mounted
Environment
Operating Temperature:-10C~50°C
Storage Temperature:-15C~60°C
Noise:≤55dB
Altitude:2000m((More than derating ))
Relative Humidity:0%~95%,no condensation

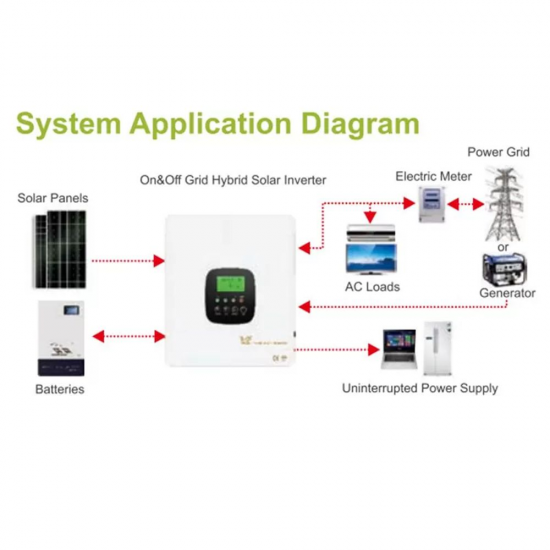

Application
This product can be used Household,Thermal power station/nuclear power station,Airport/high-speed rail station,Industrial and commercial energy storage,Agricultural Irrigation,Farm use
