Product Attributes
High frequency design, high efficiency, low no-load loss.

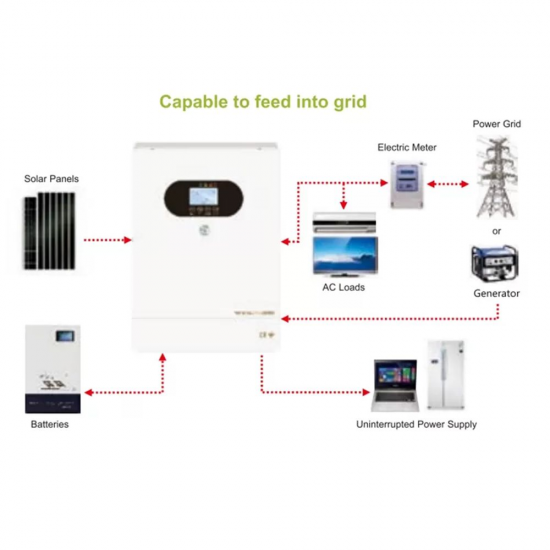

Support solar and mains power hybrid charging for the battery, intelligent deployment.
Support provide the power to the load without battery(Without parallel operation ).

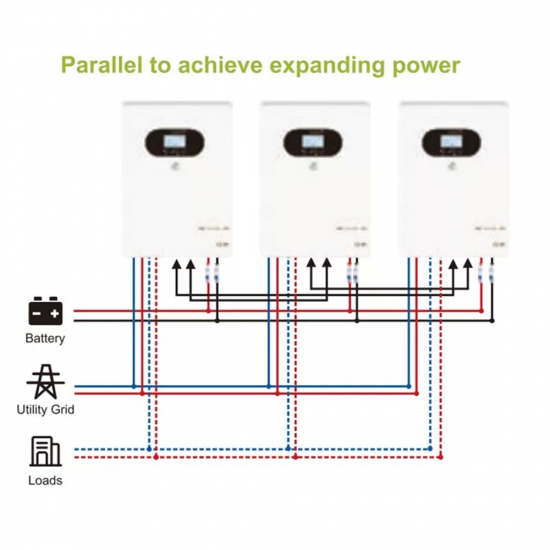

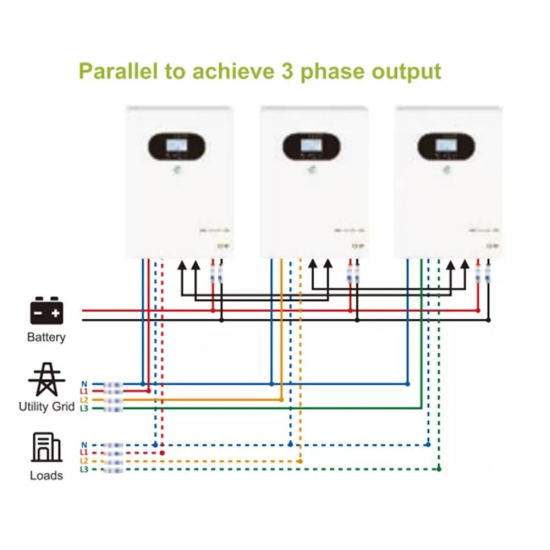

Parallel operation with up to 9 units, support output single-phase/three-phase.
Smart LCD settings (working mode, charging current, charging voltage, AC output etc.).
LED+LCD display is easy to operate
Multiple protection functions (overload, over temperature, short
circuit protection, etc.).
OEM/ODM
Aрреаrаnce
Colour
Configurable Data
Technical Parameters
Power

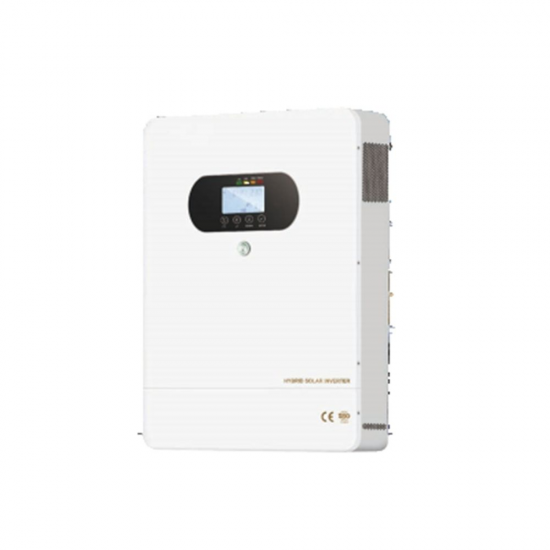

Model: HP-PLUS+50248
Rated Power:5000W
AC Output Topology/Parallel Number:Single-phase/three-phase ;Parallel operation with up to 9 units
Battery
Standard Battery Voltage:48VDC
Battery Type:Lead-acid battery/Lithium battery/Custom battery
Maximum Charging Current(PV+AC):80A
Maximum PV Charging Current:80A
Maximum AC Charging Current:60A
MPPT Solar Charge Controller
Maximum PV input Voltage (Voc)(under the lowest temperature condition):500VDC
Maximum PV Input Power/Tracking Channels:5500W/1 route
MPPT Tracking Voltage Range:120V~450VDC
AC input
Rated Input Voltage:208VAC/220VAC/230VAC/240VAC
AC Input Voltage Range:170VAC-280VAC(UPS mode)190VAC-280VAC(Appliance mode)
AC input Frequency:45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)
AC Output
Output Wave:Pure sine wave
Conversion Efficiency(INV mode):94%( peak value)
Output Voltage/Frequency:208VAC+2%/220VAC+2%/230VAC+2%/240VAC+2%,50Hz+1%/60Hz+1%(INV mode); follow input (mains mode)
Dimensions and Weight
Product Size (L*w*Hmm):460*320*110
Package Size(L*W*Hmm):520*385*215
N.W.(kg):9.75
G.W.(kg):10.75
Application
This product can be used Application,Residential,School,Hotel,Bank,Telecom,Supermarket
