Product Attributes

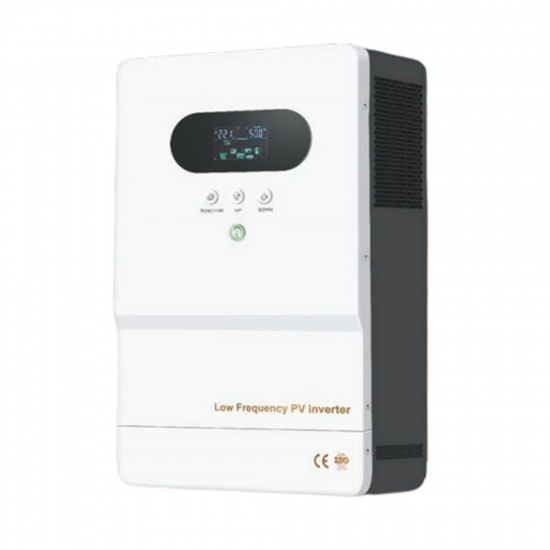

-Pure sine wave, toroidal low loss transformer, customizable mode dual output voltage.
-Smart LCD show equipment status and parameters.
-The adjustable mains charging current range is 0-30A.
-Suffer 3 times peak power, ensure the safe and stable operation of the equipment.
-Support diesel and gasoline generators, suitable for various power grid.
-Suitable for industrial and residential used, wall-mounted design.
OEM/ODM
Aрреаrаnce
Colour
Configurable Data
Technical Parameters
AC input
Rated Input Voltage:110VAC/120VAC/220VAC /230VAC/ 240VAC
AC Input Voltage Range:85VAC~138VAC(110VAC)/95VAC~148VAC(120VAC)/170VAC~275VAC(220VAC)/180VAC~285VAC(230VAC)/190VAC~295VAC(240VAC)
AC input Frequency Range:45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)
AC Output
Output Wave /Conversion Efficiency:Pure sine wave>85%
Conversion Efficiency:>85%
AC Output Voltage /Frequency Range (lNV Mode):110VAC±2%/120VAC±2%/220VAC±2%/240VAC±2%，50/60Hz±1%
Other
Protection:Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection
Protection Degree:IP20
Display:LCD
Cooling Method:Cooling Fan in Intelligent Control
Communication Interfaces:RS485,APP(WIFlmonitoring or GPRS monitoring)Optional
Working Mode ( settable ):Battery priority/ Mains priority
Operating Temperature:-15℃~40℃
Relative Humidity:0%~95%，No Condensation
Application
This product can be used Household,Earthquake monitoring,Forest Fire Monitoring,Weather monitoring,Telecom station,Network
