Product Attributes

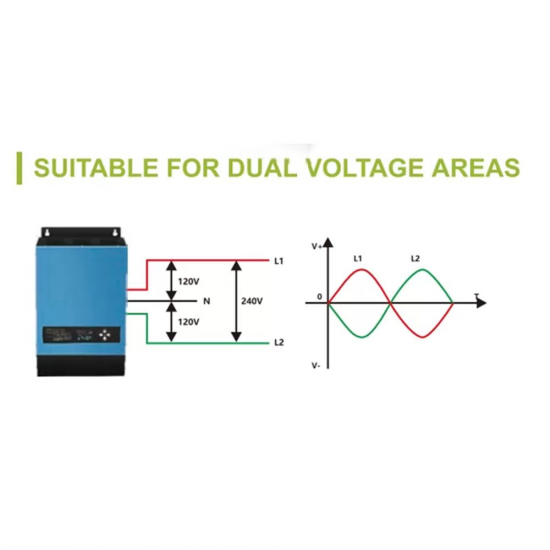

Split phase output;
Toroidal low-loss transformer, high inverter efficiency, pure sine wave output;
Intelligent LCD integrated display;
New appearance design, built-in photovoltaic MPPT controller;
Mains charging current is adjustable, allowing users to configure battery capacity more flexibly;
Three working modes can be set (mains priority, inverter priority, energy-saving mode);
The startup peak power is more than 3 times, with fully automatic and complete protection functions;
Added fault code query function to facilitate users to monitor operating status in real time.
Supports diesel (gasoline) generators and can be used in harsh power environments;

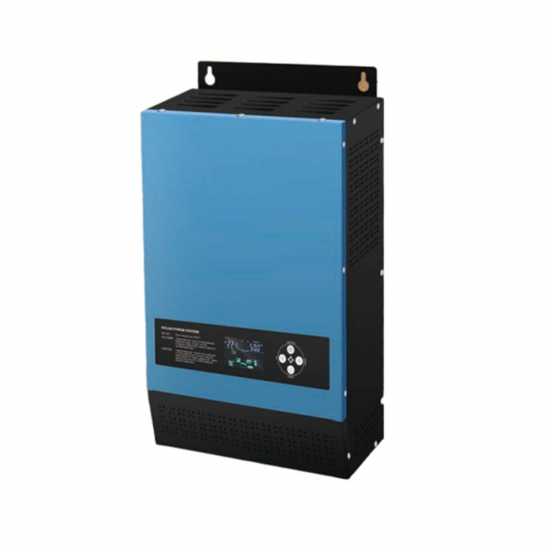

Suitable for both industrial and civil use, wall-mounted design, easy to install.
Technical Parameters
AC input
DC Input Voltage Range:10.5-15VDC(Single battery voltage)
AC Input Voltage:110V/120AC(L1-N)or220VAC/240AC(L1-L2)
AC Input Voltage Range:85VAC-138VAC(110VAC)/95VAC~148VAC(120VAC)/170VAC~275VAC(220VAC)/190VAC~295VAC(240VAC)
AC input Frequency:45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)
AC charging method:Three-stage(constant current, constant voltage, floating charge)
AC Output
Efficiency(Battery Mode):≥85%
Output Voltage(Battery Mode):L1-N/L2-N:110VAC or120VAC;L1-L2:220VAC or 240AC
Output Frequency(Battery Mode):50/60Hz±1%
Output Wave(Battery Mode):Pure Sine Wave
Efficiency(AC Mode):≥99%
Output Voltage(AC Mode):L1-N/L2-N:110VAC or120VAC;L1-L2:220VAC or 240AC
Output Frequency(AC Mode):Follow input
Output waveform distortion(Battery Mode):≤3%(Linear load)
No load loss(Battery Mode):≤0.8% rated power
No load loss(AC Mode):≤2% rated power(charger does not work in AC mode)
No load loss(Energy saving Mode):≤10W
Other
Protection:Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection
Working Mode:Battery First/AC First/Saving Energy Mode (can be set)
Display:LCD
Thermal method:Cooling fan in intelligent control
Communications:RS485,APP(WIFI monitoring or GPRS monitoring)
Operating Temperature:-10℃~-40℃
Storage temperature:-15°℃~60°C
Noise:≤55dB
Elevation:2000m(More than derating)
Humidity:0%~95%,No condensation
Application
This product can be used Household,Forest Fire Monitoring,Industrial and commercial energy storage,Telecom,station,Agricultural Irrigation,Farm use
