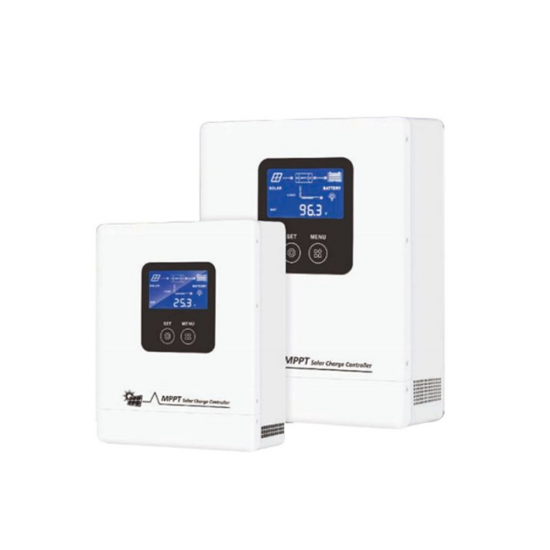

Product Attributes
-Advanced MPPT tracking algorithm, with tracking efficiency up to 99%.
-LCD graphic display of photovoltaic power generation data and simulation of power generation process.
-Multiple load working modes can be set to adapt to different working occasions..
-Ultra wide photovoltaic input voltage range, more convenient system configuration.
-It supports a variety of lead-acid batteries and lithium batteries, and users can customize the charging and discharging parameters, Users are more flexible and convenient to use.Lithium battery, activation function.
-Full range of electronic protection functions: battery anti reverse connection, PV anti reverse connection, charging over-current, DC output over-current. Over temperature, over-voltage and under voltage protection.
-Intelligent battery management function, extending battery life.
-RS485 communication interface (Mod Bus protocol) and mobile phone APP are
convenient for users to integrate and manage.
OEM/ODM
Aрреаrаnce
Colour
Configurable Data
Technical Parameters
PV array Max power
12V system: 140W(10A)280W(20A)420W(30A)560W(40A)700W(50A)840W(60A)1120W(80A)1400W(100A);
24V system: 280W(10A)560W(20A)840W(30A)1120W(40A)/1400W(50A)1680W(60A)2240W(80A)2800W(100A);
48V system: 560W(10A)1120W(20A)/1680W(30A)2240W(40A)2800W(50A)3360W(60A)4480W(80A)/5600W(100A)
Battery
Battery Type:Lead acid battery/Lithium battery (Battery type base on user charge specification)
Floating Charge Voltage:13.8V/Single battery (Lead acid battery)
Equalized Charge Voltage:14.2V/Single battery (Lead acid battery)
Charging Protection Voltage:15V/Single battery (Lead acid battery)
Protection:Over-voltage/under-voltage/over-temperature/PV&Battery anti-reverse/DC output overcurrent protection etc.
Communication:RS485/APP(WIFI or GPRS monitoring )
Activate Lithium Battery Function:Lithium battery can be activated automatically
Other
MPPT Tracking Efficiency:>99%
Display:LCD
Protection Degree:IP20
Cooling Method:Cooling fan in intelligent control
Operating Temperature:-15℃~50°℃
Relative Humidity:5~95%(No condensation)
