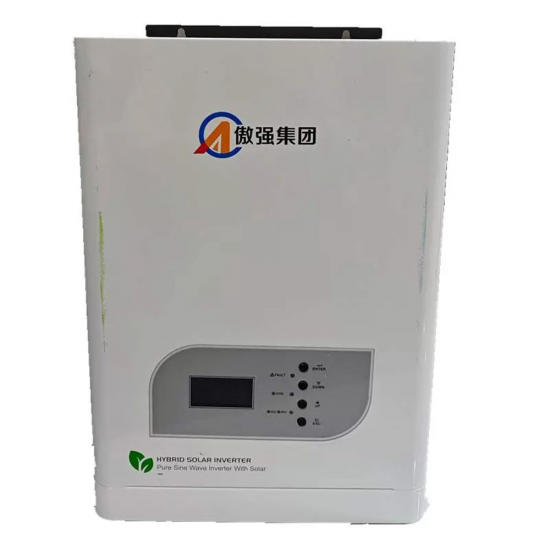

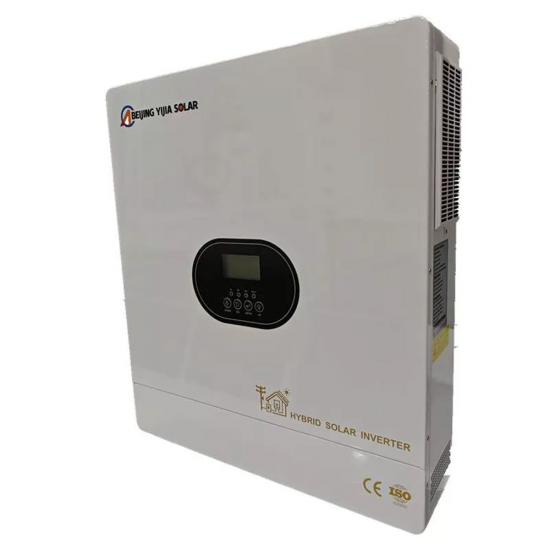

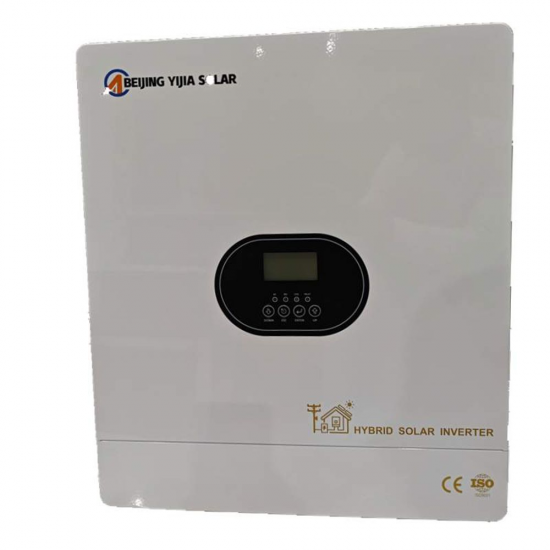

Product Introduction
Product Model:40224
Photovoltaic Input Power:5000W
Mppt Tracks Voltage Range:40VDC-450VDC
Pv Input Voltage Voc:500VDC
Photovoltaic Input Current:18A
Mppt Track Number Input Track Number:ROUTE 1
Rated Battery Voltage:24VDC
Battery Voltage Range:21-30VDC
Photovoltaic Charging Current:120A
Mains Charging Current:80A
Product Features
1、High frequency design, high power density, small size, high efficiency;
2、Two-way energy storage design, can realize the two-way flow control of electric energy, photovoltaic and mains can charge the battery;
3、Ultra-wide MPPT range, up to 40Vdc(24V model)/80Vdc (48V model);
4、The working mode can be set (grid-connected mode, off-grid mode, mixed mode);
5、With grid-connected current setting function;
6、Output priority setting function
7、With charging priority setting function
8、With lithium battery BMS communication function
9、Support battery-free operation mode
