Product Attributes

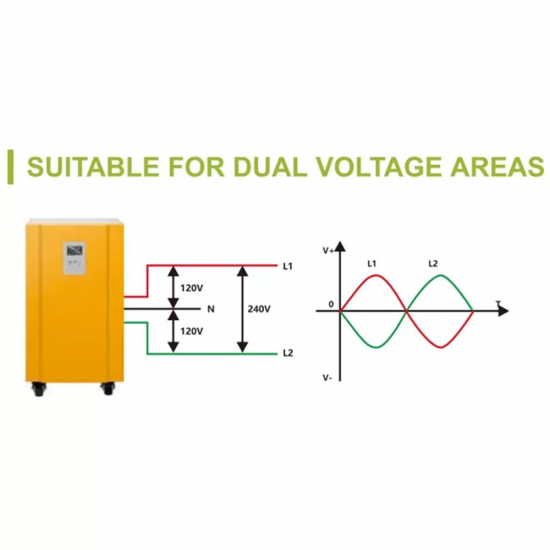

Split phase output;
UI type low loss transformer, high inverter efficiency, pure sine wave output;.
Intelligent LCD integrated display, capable of real-time viewing of set parameters and operating conditions;
The charging current of the mains is adjustable, and the user's battery capacity configuration is more flexible;
There are three working modes that can be set (mains priority, inverter priority, and energy.saving mode);
Optional built-in MPPT solar controller;.
Added fault code query function to facilitate real-time monitoring of operational status by users;
Supporting diesel (gasoline) oil generators, suitable for working in harsh power environments;
Supports RS485 communication interface mobile app (optional).
Technical Parameters
AC Output
Efficiency(Battery Mode):≥85%
Output Voltage(Battery Mode):L1-N/L2-N:110VAC or120VAC;L1-L2:220VAC or 240AC
Output Frequency(Battery Mode):50/60Hz±1%
Output Wave(Battery Mode):Pure Sine Wave
Efficiency(AC Mode):≥99%
Output Voltage(AC Mode):L1-N/L2-N:110VAC or120VAC;L1-L2:220VAC or 240AC
Output Frequency(AC Mode):Follow input
Output waveform distortion(Battery Mode):≤3%(Linear load)
No load loss(Battery Mode):≤1% rated power
No load loss(AC Mode):≤2% rated power(charger does not work in AC mode)
No load loss(Energy saving Mode):≤10W
Battery
VRLA Battery:Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize batter:Charging and discharging parameters of different types of batteries can be customized according to user requirements(charaina and discharaing parameters of diferent types of batteries can be set through the operation panel)
Other
Protection:Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection
Working Mode:Battery First/AC First/Saving Energy Mode (can be set)
Transfer Time:≤4ms
Display:LCD
Thermal method:Cooling fan in intelligent control
Communications:RS485,APP(WIFI monitoring or GPRS monitoring)
Operating Temperature:-10℃~-40℃
Storage temperature:-15°℃~60°C
Noise:≤55dB
Elevation:2000m(More than derating)
Humidity:0%~95%,No condensation
Application
This product can be used Household,Grassland,Small Power Supply Station,Hill /Island,Environmental Protection,Agricultural Irrigation
