☆ Hot dipped galvanized Steel Q235B could meet high strength requestwhich is also anti-corrosion. Suitable for all terrain, all soils, and tough
surfaces
☆ Strong and easy to install, no need to dig large holes or pour messyconcrete and wait for it to set.
☆ High quality control ensure 10 years warranty and 25 years life time.
Custom Options
。Size
。Materials
。Functionality Requirements
。Additional options depending on your specific installation conditions
Product Description
Technical Parameters

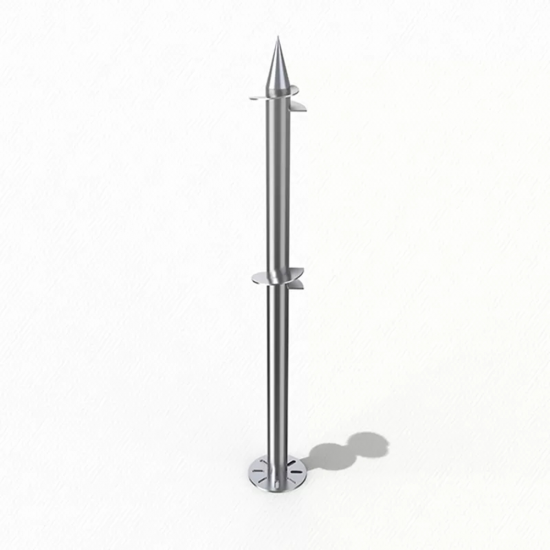

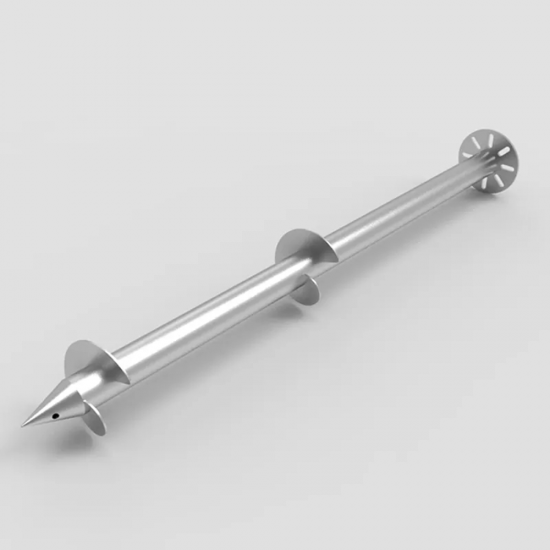

The Galvanized Helical Earth Screw we supply has stronger bearing capacity, pull.out resistance and horizontal resistance. Which make the Ground Anchor Screw Kitresistant to the side friction occurred when screwing into the ground, it has a longlife and can be reused. Additionally, it has better stability for saving the installation time and costing effectively.
Application
galvanized helical earth screw for house foundation
galvanized helical earth screw for house foundation
galvanized helical earth screw for house foundation
Material：Hot dipped galvanized Q235, carbon steel
Ground Screw Length：600mm,800mm,1m,1.2m,1.6m,1.8m,2m,2.5m,3.5m,or as required
Wall Thickness：2.5mm,2.75mm,3.0mm,3.25mm, 3.5mm or as required
Ground Screw Diameter：32mm,38mm,48mm,60mm,76mm,89mm,102mm,114mm,or asrequired
Flange Type：D180x8mm,D200x8mm,D220x8mm,or as required
Service Life：More than 10 years life service
Foundation：sandy, loosening soil, tight soil, etc
Package：Steel Pallet, or as required
