Product Attribute
It fits 30mm to 45mm framed panel
Significant savings
High module compatibility
Static reliability
Maximum service life
Custom Options
。Size
。Materials
。Functionality Requirements
。Additional options depending on your specificinstallation conditions
Product Description

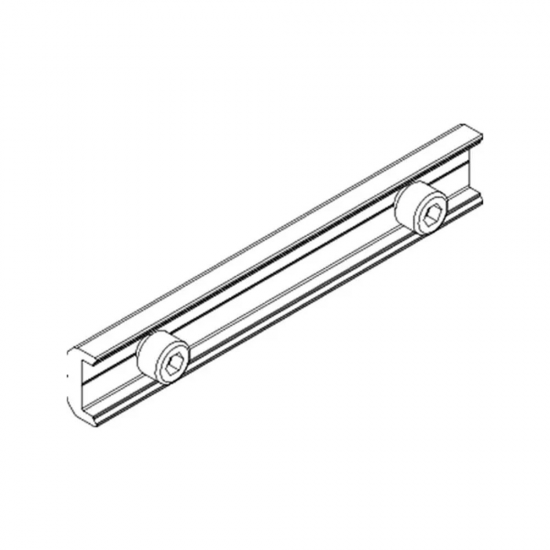

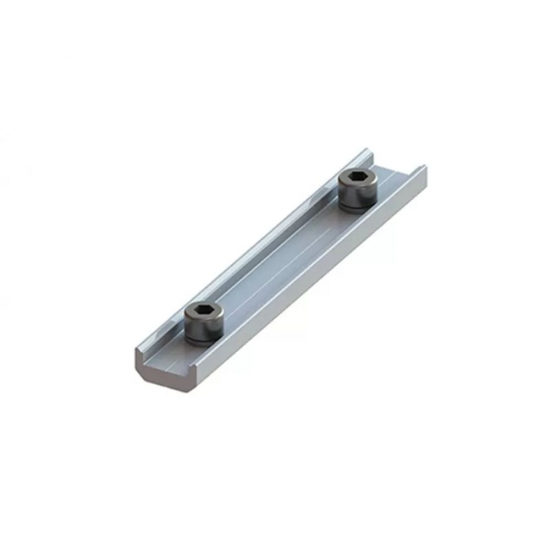

Solar Rail Splice Kits is made from high grade aluminum, tempered for strength and anodised for corrosion resistance. The easy insertion modules mean that you don'thave to slide each attachment along the rail to get it in place,they slot in quite easily at the very spot you want to attachthem.
Solar mounting aluminum rail connector rail splicekits are simple to install and you can customzied rail splice asyour need!
Product Parameters
Application:Solar roof rail

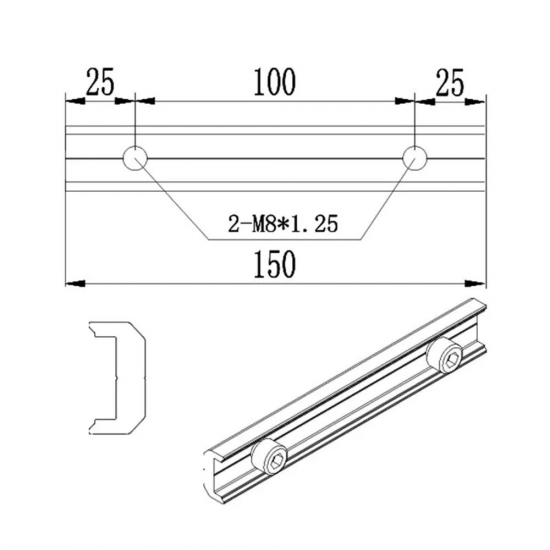

Length:150mm or customizable
Module Orientation:Landscape / portrait
Warranty:10 year materials warranty
Material:AL6005-T5 & SUS304
Standard:ASCE_7-10, JIS C8955: 2017,EN1090,International Building Code lBC 2009
