Solar Panel Mounting on Flat Roof: Innovative Systems for Commercial Photovoltaic Installations

For solar installers targeting high-energy-demand markets, mastering solar panel mounting on flat roof systems is essential. This guide examines modern flat roof solar mounting systems and solar pv flat roof mounting systems designed to maximize efficiency in challenging environments.

System Architecture: Ballasted vs. Hybrid Solutions

Leading installations now feature two primary configurations:

• Ballasted Systems: Non-penetrative designs using weighted bases (10-18kg/m²) to protect roof membranes. Newer models offer adjustable tilt angles (0°-25°) and integrated cable management.

• Hybrid Systems: Combine minimal penetration (2-4 anchors per 10m²) with ballasted elements. Recent advancements include self-sealing roof membranes that reduce leakage risks by 80% compared to traditional methods.

A 2024 deployment in an arid region demonstrated hybrid systems achieving 98% uptime during monsoon seasons while maintaining structural integrity.

Material Science Breakthroughs

Advanced manufacturing processes yield components with:

1. Aerospace-grade aluminum alloys (6063-T6) offering 30-year corrosion resistance

2. Galvanized steel frames (G115 coating) suitable for coastal/high-humidity environments

3. Polymer composites reducing thermal expansion by 65% in desert climates

4. UV-stabilized plastics maintaining rigidity above 55°C

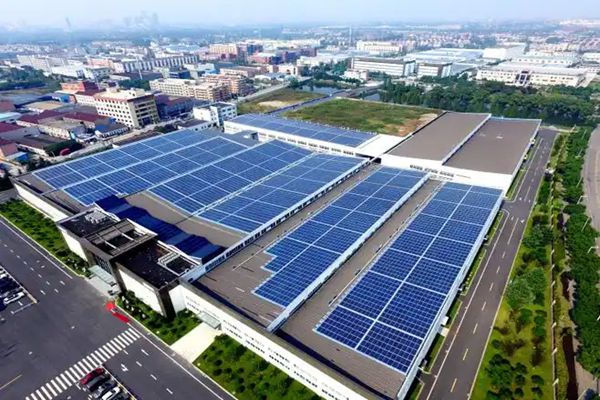

Chinese manufacturers now produce TÜV-certified systems compatible with 95% of global panel brands, as evidenced in a 2.5MW Southeast Asian industrial installation.

Climate-Adaptive Engineering Features

Optimal systems incorporate:

• Self-cleaning profiles minimizing dust accumulation in dry regions

• Hydrophilic coatings preventing water stagnation in tropical zones

• Seismic dampers for earthquake-prone areas (up to 0.6g acceleration)

• Thermal expansion joints (10-15mm/m) for extreme temperature fluctuations

Recent projects in tropical regions achieved 24% higher energy yield through orientation adjustments based on localized solar data.

Installation Efficiency Innovations

Modern solutions feature:

• Pre-assembled rail systems reducing field labor by 40%

• Modular clamp systems compatible with framed/frameless panels

• AI-powered layout planners optimizing roof space utilization

• Quick-connect wiring channels accelerating electrical integration

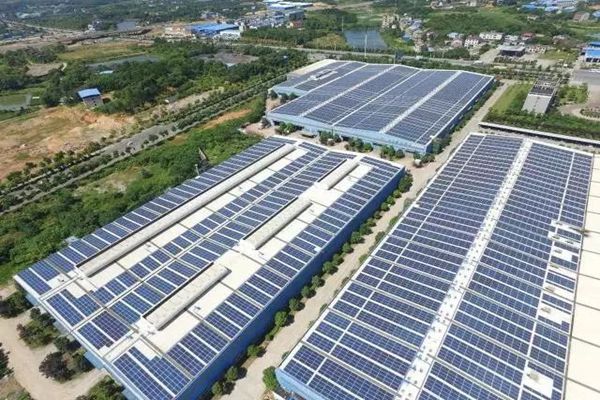

A Central Asian commercial project achieved 1MW installation in 7 days using these innovations, cutting costs by 30% compared to conventional methods.

Long-Term Performance Guarantees

Top-tier manufacturers provide:

1. Galvanic isolation between metal components and roofs

2. Corrosion-resistant fasteners (A4 stainless steel)

3. Modular design enabling component-level replacements

4. Drone-based inspection compatibility with predictive analytics

For projects exceeding 500kW, manufacturers offer free site audits using LiDAR roof mapping technology and real-time performance monitoring.

Ready to elevate your solar installations? Explore Aoqiang Group's full product range at www.aoqianggroup.com and review successful deployments in our global case studies. Contact our technical team for customized engineering drawings and ROI projections.
