technical parameters

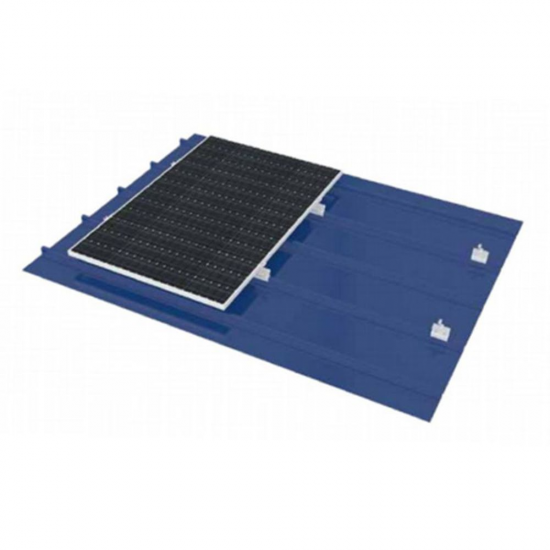

System Name:Color steel tile fixture photovoltaic system
Installation Site:Pitched Roof
Foundation:Trapezoidal Metal Roof Support
Tilt Angle:0-15°
Wind Load:≤60m/s
Snow Load:≤1.6KN/㎡
Applicable Solar Module:Framed or Frameless
Panel Layout:Portrait or Landscape
Design Standard:AS/NZS 1170, DIN 1055,JIS C8955: 2017
International Building Code IBC 2009
California Building Code CBC 2010
California Building Code CBC 2010
Material:Q235B(Hot-Dip Galvanized) & A16005-T5(Anodized)
Fastener:SUS304&Zinc-Nickel Alloy Electroplated Steel
Small Components:A16005-T5(Anodized)
Color:Silver or Customized
Warranty:10 Years
Product Description
Mainly applied to photovoltaic system,and its material is Al6005-T5. With its professional design,it can realize the perfect connection between roof support and roof to meet customer installation requirement. Professional solution and structure design can save your installation time and cost. Moreover,Patented and unique design can bring you a good installation experience
Advantages
Applicable for different metal roofs
According to customer requirement,choose different roof mounting system flexibly
Save installation time and cost
Save the installation time and cost by offering installation manual and solution
Compatible with different types of solar modules
Free and flexible to choose different types of solar modules
