technical parameters
System Name:Double-row Tripod Base-beam-free
Installation Site:Flat roof,ground
Roof Type:Concrete foundation, steel foundation
Tilt Angle:0-60°
Wind Load:≤60m/s
Snow Load:≤1.6KN/㎡
Applicable Solar Module:Framed/Frameless
Panel Layout:Portrait or Landscape
Design Standard:Euro Code/EN1991/1993/1994, BS 6399, ASCE 7-10
International Building Code lBC 2009
California Building Code CBC 2010
Material:AL6005-T5(Anodized)
Fastener:SUS304 & Zinc-Nickel Alloy Electroplated Steel
Small Components:AL6005-T5(Anodized)
Color:Silver or Customized
Warranty:10 Years

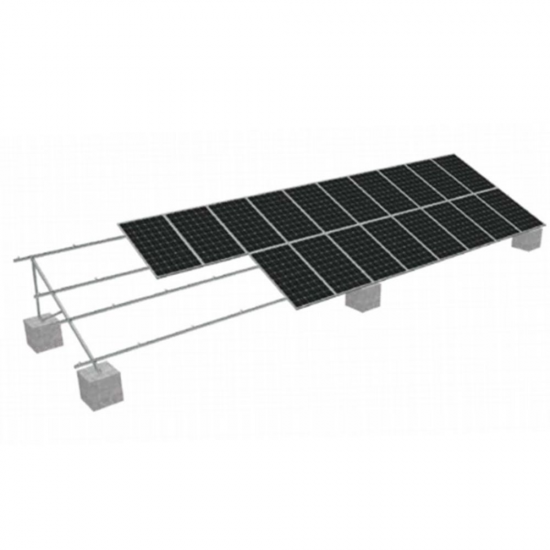

Product Description
Double-row Tripod Base-beam-free is derived from. To meet different roof projects demands. Solar modules can be orientation.Quick installation and stable structure are assured by the modular patented design.
Advantages
System Compatibility
Components mostly pre-assembled in factory to assure quick and reliable installation on site. Suitable for different flat rooftop,and compatible to different types of solar modules
Unique Mudsill Design
The mudsill can be fixed to flat roof or pitched roof with concrete foundation or steel foundation
Solar Module Layout Flexibility
Both landscape and portrait solar module layout are suitable. Both single row and double rows layout can be achieved separately or combined.
Adjustability
Tilt angle can be adjustable
