technical parameters
Installation Site:Ground
Foundation:U Post
Tilt Angle:0-60°
Wind Load:≤60m/s
Snow Load:≤1.6KN/㎡
Ground Clearance:≤500mm~2000mm
Applicable Solar Module:Framed or Frameless
Panel Layout:Portrait or Landscape
Design Standard:Euro Code/EN1991/1993/1994,BS 6399, ASCE 7-10
International Building Code IBC 2009
California Building Code CBC 2010
Material:Steel Q235B(Hot-Dip Galvanized),AL6005-T5(Anodized)
Fastener:SUS304 & Zinc-Nickel Alloy Electroplated Steel
Small Components：AL6005-T5(Anodized)
Color:Silver or Customized
Warranty:10 Years
Product Description

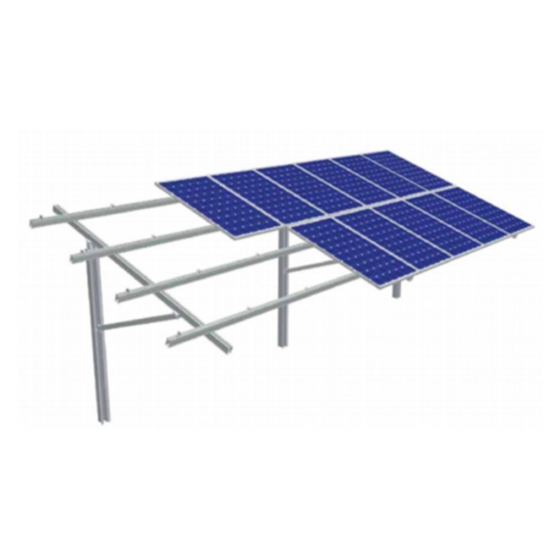

Ground Terrace is a highly pre-assembled ground mounting system,which can be applied to the installation of large commercial and utility scale solar PV projects. Made of high quality aluminum material, has excellent corrosion resistance performance. The single-pile patented structure design saves installation time and cost, with good compatibility to varied solar modules.
Advantages
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled in factory,no onsite cut and drill request, saving the onsite installation time and cost.
Single-Pile Design
Single-pile design reduce half of the ramming time, saving the construction cost.
Structure Configuration Multi-Options
Single or double embrace bars structure configuration available to meet varied projects requests.
Flexibility and Adjustability
The structure can be adjusted with some tolerance with east-west.west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules
