technical parameters
System Name:Mini-Rail Kit
Installation Site:Pitched Roof
Roof Type:Trapezoidal Roof
Tilt Angle:0°
Wind Load:≤60m/s
Snow Load:≤1.6KN/㎡
Applicable Solar Module:Framed or Frameless
Panel Layout:Portrait or Landscape
Design Standard:Euro Code/EN1991/1993/1994, BS 6399, ASCE 7-10
International Building Code lBC 2009
California Building Code CBC 2010
Material:Q235B(Hot-Dip Galvanized)& AL6005-T5(Anodized)
Fastener:SUS304 & Zinc-Nickel Alloy Electroplated Steel
Components:AL6005-T5(Anodized)
Color:Silver or Customized
Warranty:10 Years
Product Description

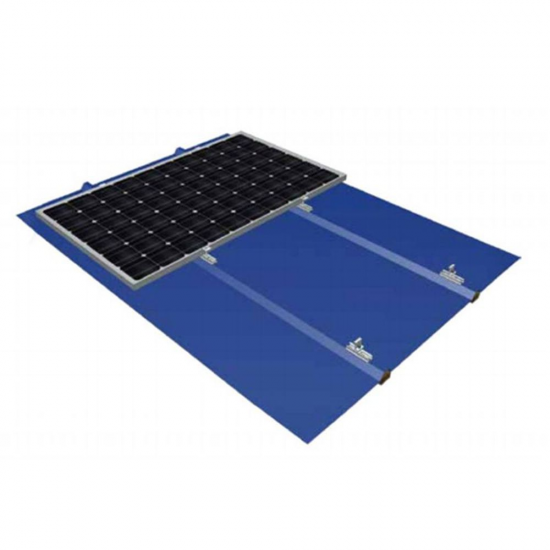

Mini Kit is mainly applied to Trapezoidal Metal Roof commercial and industrial solar projects. The system can achieve stable and strong connection between the roof support structure and solar modules with modular Patented design.Pre-assembled kits save the installation time and cost onsite.
Advantages
Applicable for Different Metal Roofs
Design project by project, selecting configuration system components flexibly
Save Installation Time and Cost
Pre-assembled components and clear installation manuals are supplied to save the onsite installation time and cost,lead to better Rol.
Compatible to Different Types of Solar Modules
Compatible to most kinds of framed 60-cell, 72-cell.half-cut cells modules and frameless modules
