technical parameters
Installation Site:Ground
Foundation:C-shape,1-shape,几-shape Piles
Tilt Angle:0-60°
Wind Load:≤60m/s
Snow Load:≤1.6KN/㎡
Ground Clearance:≤500-2000mm
Applicable Solar Module:Framed or Frameless
Panel Layout:Portrait or Landscape
Design Standard:Euro Code/EN1991/1993/1994,BS 6399, ASCE 7-10
International Building Code IBC 2009
California Building Code CBC 2010
Material:Q235B(Hot-Dip Galvanized)
Fastener:SUS304 & Hot Dip Galvanized
Small Components：AL6005-T5(Anodized)
Color:Silver or Customized
Warranty:10 Years
Product Description

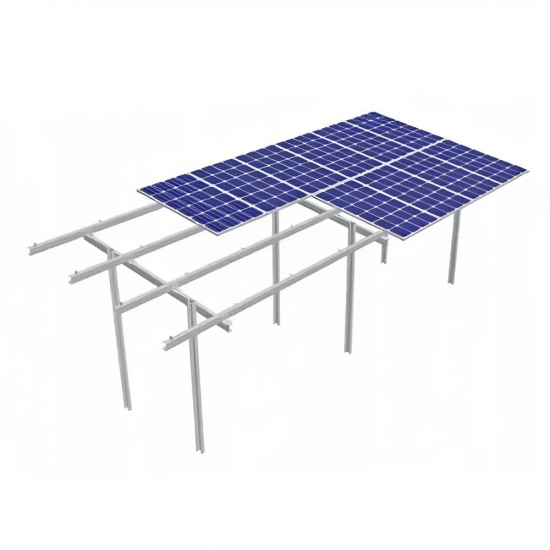

Ground Solar PV Mounting System is applied for the installation of large-scale and utility-scale solar PV power plant. Components are made of hot-dip galvanized steel, with good performance with varied solar modules. Unique piles and structure design save installation time and cost.
Advantages
Unique Pile Design
Unique post design suitable for varied soil conditions and strengthen the whole structure stability
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.
Flexibility and Adjustability
The structure can be adjusted with some tolerance with east-west.west-south and south directions, assuring flexible on-site installation to achieve best yield for solar modules
Compatible to Varied Solar Modules
Module clamps, the system compatible with most kinds of framed60-cell,72-cell, half-cut cells modules and frameless modules
