Roof Solar PV Mounting System Matrix II

Overview

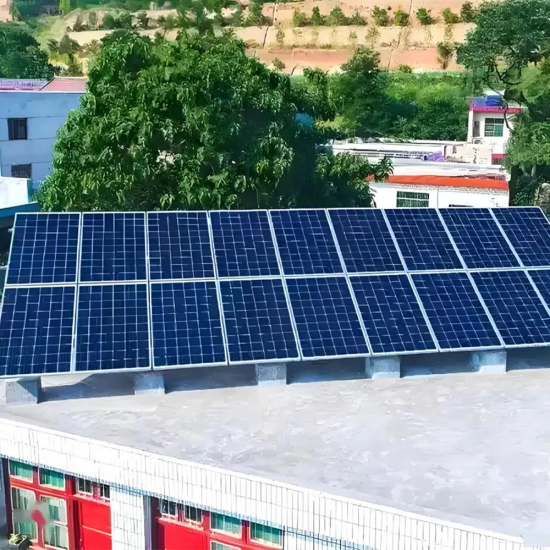

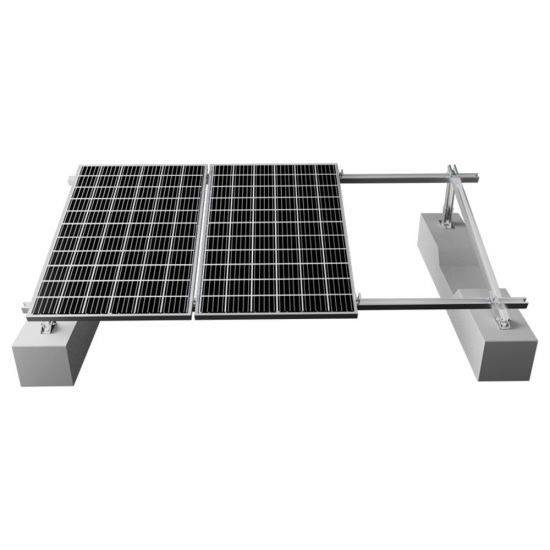

Roof Solar PV Mounting System Matrix II is derived from RM

I to meet different roof projects demands. Solar modules can be

arranged with single or double rows of landscape or portrait

orientation. Quick installation and stable structure are assured by

the modular Patented design.

Advantages

System Compatibility

Components mostly pre-assembled in factory to assure quick and reliable installation on site. Suitable for different flat rooftop,

and compatible to different types of solar modules.

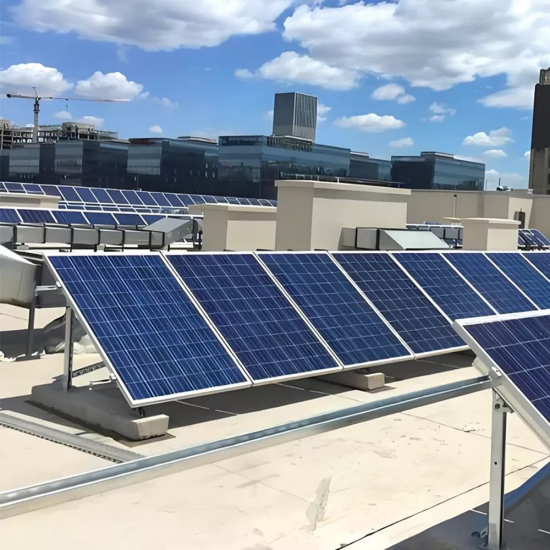

Unique Mudsill Design

The mudsill can be fixed to flat roof or pitched roof with concrete foundation or steel foundation.

Solar Module Layout Flexibility

Both landscape and portrait solar module layout are suitable.Both single row and double rows layout can be achieved

separately or combined.

Adjustability

Tilt angle can be adjustable

Components

●Design Standard : Euro Code/EN1991/1993/1994,BS 6399, ASCE 7-10 Lnternational Building Code IBC 2009,

California Building Code CBC 2010

●Material :  AL6005-T5(Anodized)

●Fastener : SUS304 & Zinc- Nickel Alloy Electroplated Steel

●Small Components ：AL6005-T5(Anodized)

●Color : Silver or Customized

●Warranty : 10-Year Warranty

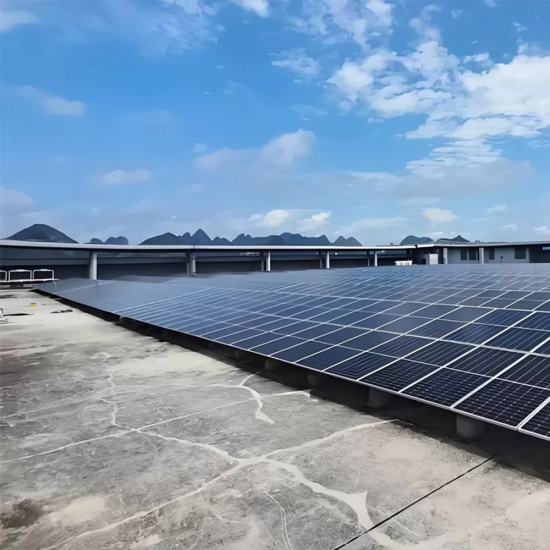

Application

●System Name : Roof Solar PV Mounting System Matrix II

●Installation Site : Flat Roof, Pitched Roof

●Roof Type : Concrete Roof, Metal Roof

●Tilt Angle : 0-60°

●Wind Load : ≤60m/s

●Snow Load: ≤1.6KN/m²

●Applicable Solar Module：Framed or Frameless

●Panel Layout：Portrait or Landscape
