technical parameters
System Name:Trapezoidal Metal
Installation Site:Pitched Roof
Foundation:Trapezoidal Metal Roof Support
Tilt Angle:0-15°
Wind Load:≤60m/s
Snow Load:≤1.6KN/㎡
Applicable Solar Module:Framed or Frameless
Panel Layout:Portrait or Landscape
Design Standard:Euro Code/EN1991/1993/1994,BS 6399, ASCE 7-10
International Building Code lBC 2009
California Building Code CBC 2010
Material:AL6005-T5(Anodized)
Fastener:SUS304 & Zinc-Nickel Alloy Electroplated Steel
Components:AL6005-T5(Anodized)
Color:Silver or Customized
Warranty:10 Years
Product Description

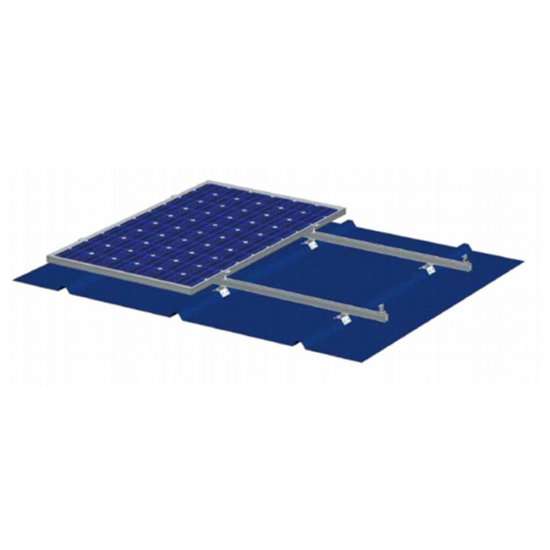

Trapezoidal Metal Roof Clamp Solar PV Mounting System is mainly applied to metal roof, and its main material is aluminium alloy. With its professional design,it can realize the perfect connection between kliploks and roof to meet customer installation requirement.Professional solution and structure design can save your installation time and cost. Moreover, Patented and unique design can bring you a good and fast installation experience
Advantages
Applicable for different metal roofs
According to different metal roof types, making professionally design and achieve perfectly connection between the roof tiles
Save installation time and cost
Patented structure design and system solutions will reduce on-site installation time and cost
Compatible to different types of solar modules
By its independent researched clamps,it is compatible to various solar modules in the market
Excellent structure design
Professional structure design will meet components installation requirements of tiled or with angle , as well as the installation in landscape and portrait orientation
